Cara Pemilihan Cryo Storage Container berdasarkan Kebutuhan Jenis Laboratorium-Laboratorium Tertentu (produk Haier Biomed)
Cryo Storage Container merupakan penyimpan bahan biologis dalam suhu yang sangat rendah untuk menjaga kualitas dan viabilitas dari bahan biologis tersebut. Pemilihan Cryo Storage Container penting dilakukan untuk disesuaikan dengan kebutuhan laboratorium di institusi masing-masing. Berikut terdapat beberapa cara memilih Cryo Storage Container agar sesuai kebutuhan Anda:
Cara Memilih Cryo Storage Container
- Tentukan Bahan Biologis yang Akan Dilakukan Penyimpanan
Bahan Biologis yang perlu disimpan dalam suhu rendah antara lain sel, jaringan tertentu, dan vaksin. Bahan tersebut memerlukan suhu yang sangat rendah (di bawah -150°C untuk memastikan stabilitas dalam jangka panjang, yang hanya bisa dicapai dengan liquid nitrogen.
- Tentukan Jumlah Bahan Biologi yang Akan Disimpan
Hal ini perlu diperhatikan dalam pemilihan Cryo Storage Container karena sangat beragam ukuran yang disediakan oleh manufaktur. Ukuran ini mulai dari skala untuk laboratorium riset, laboratorium pelayanan, laboratorium rumah sakit, hingga laboratorium industri yang tentunya membutuhkan dalam skala liter yang besar. - Tentukan Model dan Ukuran Cryo Storage Container
Penentuan model dan ukuran untuk menyesuaikan kondisi ruangan laboratorium yang akan digunakan untuk menaruh cryo storage container yang dipilih.
Apa Saja Type Liquid Nitrogen Tank yang Disediakan Haier Biomedical?
Haier Biomedical fokus pada bidang riset dan pengembangan, produksi, serta penjualan alat penyimpanan dengan suhu rendah untuk sampel biomedis. Produk dari Haier Biomedical telah digunakan di lebih dari 135 negara dan wilayah di berbagai belahan dunia, dengan perusahaan memiliki lebih dari 700 jaringan distribusi internasional yang terus berkembang. Haier Biomedical juga telah menjalin kerjasama dengan lebih dari 40 organisasi internasional, termasuk Organisasi Kesehatan Dunia (WHO), Dana Anak-anak Perserikatan Bangsa-Bangsa (UNICEF), dan Pakta Global PBB (UNGC).
Haier Biomedical China telah memberikan layanan kepada puluhan ribu pengguna akhir di sektor kesehatan dan medis, seperti rumah sakit, perusahaan bioteknologi, universitas dan institusi pendidikan tinggi, lembaga riset ilmiah, pusat pengendalian penyakit, plasma stations, dan lembaga pengujian. Haier Biomedical China menyediakan beberapa type Liquid Nitrogen Tank, yaitu:
- CryoBio 6S
CryoBio 6S, dengan isi ulang otomatis. Cocok untuk kebutuhan penyimpanan sampel biologis kelas menengah ke atas di laboratorium, rumah sakit, bank sampel, dan peternakan.
- CryoBio Series
Cocok digunakan di lembaga penelitian ilmiah, perusahaan elektronik, kimia, farmasi, dan industri terkait lainnya, laboratorium, stasiun darah, rumah sakit, pusat pengendalian dan pencegahan penyakit, serta institusi medis. Kontainer yang ideal untuk menyimpan dan menjaga kantung darah, sampel biologis, bahan biologis, vaksin, dan reagen tetap aktif sebagai contoh utama.
- Portable Cryogenic Transfer Tank
Sangat cocok untuk pengangkutan sampel dalam jumlah kecil dan jarak pendek di unit laboratorium atau rumah sakit.
- Liquid Nitrogen Container-Biobank Series
Seri Biobank untuk penyimpanan skala besar dirancang untuk memastikan kapasitas penyimpanan maksimum dengan konsumsi nitrogen cair minimum untuk menurunkan biaya operasi secara keseluruhan.
- Liquid Nitrogen Container-Self-pressurized Series
Gabungan inovasi terbaru, desainnya yang unik memanfaatkan tekanan yang dihasilkan dari penguapan nitrogen cair dalam jumlah kecil untuk mengeluarkan LN2 ke dalam wadah lain. Kapasitas penyimpanan berkisar antara 5 hingga 500 liter.
- Liquid Nitrogen Container-Smart Series
Sistem manajemen cerdas, IoT, dan cloud memonitor suhu dan level cairan secara simultan untuk memberikan informasi yang akurat dan real-time tentang parameter penting guna memastikan keamanan sampel yang terbaik.
- Liquid Nitrogen Container-Medium Sized Storage Series
Memiliki fitur konsumsi LN2 yang rendah dan tapak yang relatif kecil untuk penyimpanan sampel berkapasitas sedang. Kompatibel untuk penyimpanan kantong darah.
- Liquid Nitrogen Container-Dryshipper Series
Dirancang untuk transportasi sampel yang aman dalam kondisi cryogenic (penyimpanan fase uap, suhu di bawah -190 ℃). Karena risiko pelepasan LN2 dapat dihindari, maka alat ini cocok untuk transportasi sampel melalui udara.
- Liquid Nitrogen Container-Low Temperature Transport Trolley
Unit ini dapat digunakan untuk mengawetkan plasma dan biomaterial selama transportasi. Sangat cocok untuk operasi hipotermia dalam dan pengangkutan sampel di rumah sakit, berbagai biobank, dan laboratorium. Baja tahan karat berkualitas tinggi yang dikombinasikan dengan lapisan insulasi termal memastikan keefektifan dan daya tahan troli pemindahan suhu rendah.
- Liquid Nitrogen Container-High Capacity Series
Menyediakan dua solusi kriopreservasi untuk penyimpanan statis jangka panjang dan pengangkutan sampel biologis.
- Liquid Nitrogen Container-Small Sized Storage Series (Square Racks)
Banyak digunakan di banyak laboratorium, seri penyimpanan berukuran kecil ini memiliki fitur konsumsi LN₂ yang rendah dan desain pegangan ganda. Menyimpan antara 600 dan 1100 botol dalam rak persegi dan kotak cryo.

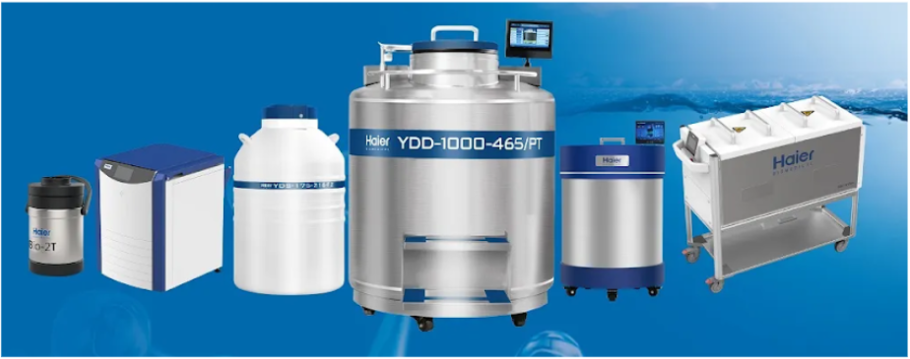

Gambar 1. Liquid Nitrogen Storage dari Haier Biomedical
Type Liquid Nitrogen Tank dari Haier Biomedical
Liquid Nitrogen Tank dari brand Haier Biomedical memiliki beberapa tipe. Jika terdapat kebutuhan dari user dan peneliti dapat menghubungi sales PT. Indogen Intertama melalui WhatsApp berikut untuk fast respon WhatsApp Indogen . Beberapa type Liquid Nitrogen Tank dari Haier Biomedical diantaranya :
Tabel 1. Type Liquid Nitrogen Tank Haier Biomedical
| Tipe | Deskripsi | Gambar |
| YDD-350-326/PM | 1. Maximum Storage Capacity: 13000 (for 2ml Vials)
2. Volume of LN2: 350L 3. Inside Neck Diameter : 326mm 4. Effective Internal Height : 600mm 5. Height : 1263mm 6. Operating Height : 1263mm 7. Outside Diameter : 875mm 8. Door Width Requirement : 895mm 9. Empty Weight : 219kg 10. Full Weight : 502kg |
 |
| YDD-370-326/PM | 1. Maximum Storage Capacity: 15600 (for 2ml Vials)
2. Volume of LN2: 370L 3. Inside Neck Diameter : 326mm 4. Effective Internal Height : 704mm 5. Height : 1370mm 6. Operating Height : 1096mm 7. Outside Diameter : 875mm 8. Door Width Requirement : 895mm 9. Empty Weight : 230kg 10. Full Weight : 529kg |
 |
| YDD-450-326/PM | 1. Maximum Storage Capacity: 21000 (for 2ml Vials)
2. Volume of LN2: 480L 3. Inside Neck Diameter : 326mm 4. Effective Internal Height : 900mm 5. Height : 1570mm 6. Operating Height : 1060mm 7. Outside Diameter : 875mm 8. Door Width Requirement : 895mm 9. Empty Weight : 286kg 10. Full Weight : 674kg |
 |
| YDD-550-445/PM | 1. Maximum Storage Capacity: 27000 (for 2ml Vials)
2. Volume of LN2: 587L 3. Inside Neck Diameter : 445mm 4. Effective Internal Height : 600mm 5. Height : 1266mm 6. Operating Height : 1266mm 7. Outside Diameter : 1104mm 8. Door Width Requirement : 1124mm 9. Empty Weight : 328kg 10. Full Weight : 802kg |
 |
| YDD-750-445/PM | 1. Maximum Storage Capacity: 37800 (for 2ml Vials)
2. Volume of LN2: 783L 3. Inside Neck Diameter : 445mm 4. Effective Internal Height : 828mm 5. Height : 1486mm 6. Operating Height : 995mm 7. Outside Diameter : 1104mm 8. Door Width Requirement : 1124mm 9. Empty Weight : 372kg 10. Full Weight : 1005kg |
 |
| YDD-850-465/PM | 1. Maximum Storage Capacity: 42900 (for 2ml Vials)
2. Volume of LN2: 890L 3. Inside Neck Diameter : 465mm 4. Effective Internal Height : 773mm 5. Height : 1499mm 6. Operating Height : 980mm 7. Outside Diameter : 1190mm 8. Door Width Requirement : 1210mm 9. Empty Weight : 441kg 10. Full Weight : 1160kg |
 |
| YDD-1000-465/PT | 1. Maximum Storage Capacity: 51000 (for 2ml Vials)
2. Volume of LN2: 1014L 3. Inside Neck Diameter : 465mm 4. Effective Internal Height : 900mm 5. Height : 1619mm 6. Operating Height : 1090mm 7. Outside Diameter : 1190mm 8. Door Width Requirement : 1210mm 9. Empty Weight : 495kg 10. Full Weight : 1314kg |
 |
| YDD-1300-635/PM | 1. Maximum Storage Capacity: 58500 (for 2ml Vials)
2. Volume of LN2: 1340L 3. Inside Neck Diameter : 635mm 4. Effective Internal Height : 620mm 5. Height : 1341mm 6. Operating Height : 997mm 7. Outside Diameter : 1565mm 8. Door Width Requirement : 1585mm 9. Empty Weight : 851kg 10. Full Weight : 1934kg |
 |
| YDD-1600-635/PM | 1. Maximum Storage Capacity: 76050 (for 2ml Vials)
2. Volume of LN2: 1660L 3. Inside Neck Diameter : 635mm 4. Effective Internal Height : 791mm 5. Height : 1534mm 6. Operating Height : 967mm 7. Outside Diameter : 1565mm 8. Door Width Requirement : 1585mm 9. Empty Weight : 914kg 10. Full Weight : 2255kg |
 |
| YDD-1800-635/PT | 1. Maximum Storage Capacity: 94875 (for 2ml Vials)
2. Volume of LN2: 1880L 3. Inside Neck Diameter : 635mm 4. Effective Internal Height : 900mm 5. Height : 1661mm 6. Operating Height : 1097mm 7. Outside Diameter : 1565mm 8. Door Width Requirement : 1585mm 9. Empty Weight : 985kg 10. Full Weight : 2504kg |
 |
| YDC-3000H | 1. Dimensions (L*W*H)(mm) : 1295*523*1095
2. Frozen Storage Space (L*W*H)(mm) : 900*335*163 3. Liquid Nitrogen Under Tray (L) : 33 4. Maximum Storage Capacity: 3000 (for 2ml Vials) |
 |
| Bio-2T | 1. Volume of LN (L) : 2
2. Maximum Storage Capacity: 54 (for 2ml Vials) 3. Temperature Range (°C) : -135~-196 4. Inside Neck Diameter (mm) : 125 5. Outside Neck Diameter (mm) : 156 |
 |
| CryoBio 34Z | 1. Temperature (°C) : -196~normal temperature
2. Volume (L) : 550 3. Overall Dimensions (L*W*H)(mm) : 1410*1100*1190 4. Weight (kg) : 400 5. Maximum Storage Capacity: 33550 (for 2ml Vials Gas Phase) 6. Maximum Storage Capacity: 42900 (for 2ml Vials Liquid Phase) |
 |
| YDS-65-216-FZ | 1. Maximum Storage Volume : 2400 (for 2ml Vials)
2. Liquid Nitrogen Volume (L) : 65 3. Static Evapouration Rate* (L/D) : 0.78 4. Static Holding Time ** (Day) : 83 5. Neck Opening (mm) : 216 6. Overall Height (mm) : 760 7. Overall Diameter (mm) : 681 8. Empty Weight (kg) : 39.3 9. Full Weight (kg) : 81.5 |
 |
| YDS-95-216-FZ | 1. Maximum Storage Volume : 3000 (for 2ml Vials)
2. Liquid Nitrogen Volume (L) : 95 3. Static Evapouration Rate* (L/D) : 0.94 4. Static Holding Time ** (Day) : 101 5. Neck Opening (mm) : 216 6. Overall Height (mm) : 825 7. Overall Diameter (mm) : 681 8. Empty Weight (kg) : 42.7 9. Full Weight (kg) : 112.3 |
 |
| YDS-115-216-FZ | 1. Maximum Storage Volume : 3600 (for 2ml Vials)
2. Liquid Nitrogen Volume (L) : 115 3. Static Evapouration Rate* (L/D) : 0.94 4. Static Holding Time ** (Day) : 122 5. Neck Opening (mm) : 216 6. Overall Height (mm) : 895 7. Overall Diameter (mm) : 681 8. Empty Weight (kg) : 43.3 9. Full Weight (kg) : 133.5 |
 |
| YDS-145-216-FZ | 1. Maximum Storage Volume : 4800 (for 2ml Vials)
2. Liquid Nitrogen Volume (L) : 145 3. Static Evapouration Rate* (L/D) : 0.94 4. Static Holding Time ** (Day) : 154 5. Neck Opening (mm) : 216 6. Overall Height (mm) : 995 7. Overall Diameter (mm) : 681 8. Empty Weight (kg) : 49.9 9. Full Weight (kg) : 158.9 |
 |
| YDS-175-216-FZ | 1. Maximum Storage Volume : 6000 (for 2ml Vials)
2. Liquid Nitrogen Volume (L) : 175 3. Static Evapouration Rate* (L/D) : 0.95 4. Static Holding Time ** (Day) : 184 5. Neck Opening (mm) : 216 6. Overall Height (mm) : 1110 7. Overall Diameter (mm) : 681 8. Empty Weight (kg) : 54.8 9. Full Weight (kg) : 199.5 |
 |
| YDS-10-125-F | 1. Maximum Storage Volume : 100 (for 1.2&2ml Vials (25 per box))
2. Liquid Nitrogen Volume (L) : 10 3. Static Evapouration Rate* (L/D) : 0.42 4. Static Holding Time ** (Day) : 24 5. Opening Diameter (mm) : 125 6. Height (mm) : 625 7. Outside Diameter (mm) : 300 8. Empty Weight (kg) : 6.3 9. Full Weight (kg) : 15.1 |
 |
| YDS-30-125-F | 1. Maximum Storage Volume : 600 (for 1.2&2ml Vials (25 per box))
2. Liquid Nitrogen Volume (L) : 31.5 3. Static Evapouration Rate* (L/D) : 0.35 4. Static Holding Time ** (Day) : 90 5. Opening Diameter (mm) : 125 6. Height (mm) : 704 7. Outside Diameter (mm) : 462 8. Empty Weight (kg) : 13 9. Full Weight (kg) : 38.9 |
 |
| YDS-35-125-F | 1. Maximum Storage Volume : 750 (for 1.2&2ml Vials (25 per box))
2. Liquid Nitrogen Volume (L) : 35.5 3. Static Evapouration Rate* (L/D) : 0.36 4. Static Holding Time ** (Day) : 97 5. Opening Diameter (mm) : 125 6. Height (mm) : 748 7. Outside Diameter (mm) : 462 8. Empty Weight (kg) : 14.5 9. Full Weight (kg) : 43.2 |
 |
| YDS-47-127-T37 | 1. Maximum Storage Volume : 1110 (for 1.2&2ml Vials (25 per box))
2. Liquid Nitrogen Volume (L) : 47 3. Static Evapouration Rate* (L/D) : 0.36 4. Static Holding Time ** (Day) : 130 5. Opening Diameter (mm) : 127 6. Height (mm) : 718 7. Outside Diameter (mm) : 508 8. Empty Weight (kg) : 18.2 9. Full Weight (kg) : 60.9 |
 |
| YDS-50B-125-F | 1. Maximum Storage Volume : 900 (for 1.2&2ml Vials (25 per box))
2. Liquid Nitrogen Volume (L) : 50 3. Static Evapouration Rate* (L/D) : 0.45 4. Static Holding Time ** (Day) : 110 5. Opening Diameter (mm) : 125 6. Height (mm) : 818 7. Outside Diameter (mm) : 462 8. Empty Weight (kg) : 17.3 9. Full Weight (kg) : 62.4 |
 |
| YDS-2-30 | 1. Maximum Storage Volume : 3 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 2 3. Static Evapouration Rate* (L/D) : 0.07 4. Static Holding Time ** (Day) : 28 5. Opening Diameter (mm) : 30 6. Height (mm) : 399 7. Outside Diameter (mm) : 223 8. Canister Outside Diameter (mm) : 19 9. Outside Height (mm) : 120 10. Empty Weight (kg) : 2.8 11. Full Weight (kg) : 4.5 |
 |
| YDS-2-35 | 1. Maximum Storage Volume : 3 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 2 3. Static Evapouration Rate* (L/D) : 0.08 4. Static Holding Time ** (Day) : 24 5. Opening Diameter (mm) : 35 6. Height (mm) : 428 7. Outside Diameter (mm) : 204 8. Canister Outside Diameter (mm) : 25 9. Outside Height (mm) : 120 10. Empty Weight (kg) : 2.6 11. Full Weight (kg) : 4.4 |
 |
| YDS-3 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 3 3. Static Evapouration Rate* (L/D) : 0.12 4. Static Holding Time ** (Day) : 26 5. Opening Diameter (mm) : 50 6. Height (mm) : 435 7. Outside Diameter (mm) : 223 8. Canister Outside Diameter (mm) : 38 9. Outside Height (mm) : 120 10. Empty Weight (kg) : 3.1 11. Full Weight (kg) : 6 |
 |
| YDS-6 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 6 3. Static Evapouration Rate* (L/D) : 0.12 4. Static Holding Time ** (Day) : 52 5. Opening Diameter (mm) : 50 6. Height (mm) : 482 7. Outside Diameter (mm) : 300 8. Canister Outside Diameter (mm) : 38 9. Outside Height (mm) : 120 10. Empty Weight (kg) : 4.8 11. Full Weight (kg) : 9.9 |
 |
| YDS-10 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 10 3. Static Evapouration Rate* (L/D) : 0.12 4. Static Holding Time ** (Day) : 86 5. Opening Diameter (mm) : 50 6. Height (mm) : 552 7. Outside Diameter (mm) : 300 8. Canister Outside Diameter (mm) : 38 9. Outside Height (mm) : 120 10. Empty Weight (kg) : 6.1 11. Full Weight (kg) : 14.5 |
 |
| YDS-10-80 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 10 3. Static Evapouration Rate* (L/D) : 0.21 4. Static Holding Time ** (Day) : 48 5. Opening Diameter (mm) : 80 6. Height (mm) : 557 7. Outside Diameter (mm) : 300 8. Canister Outside Diameter (mm) : 63 9. Outside Height (mm) : 120 10. Empty Weight (kg) : 6.2 11. Full Weight (kg) : 14.7 |
 |
| YDS-10-125 | 1. Maximum Storage Volume : 1 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 10 3. Static Evapouration Rate* (L/D) : 0.43 4. Static Holding Time ** (Day) : 24 5. Opening Diameter (mm) : 125 6. Height (mm) : 625 7. Outside Diameter (mm) : 300 8. Canister Outside Diameter (mm) : 97 9. Outside Height (mm) : 120 10. Empty Weight (kg) : 6.3 11. Full Weight (kg) : 15.1 |
 |
| YDS-13 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 13 3. Static Evapouration Rate* (L/D) : 0.12 4. Static Holding Time ** (Day) : 109 5. Opening Diameter (mm) : 50 6. Height (mm) : 623 7. Outside Diameter (mm) : 310 8. Canister Outside Diameter (mm) : 38 9. Outside Height (mm) : 276 10. Empty Weight (kg) : 6.3 11. Full Weight (kg) : 17.3 |
 |
| YDS-15 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 15 3. Static Evapouration Rate* (L/D) : 0.11 4. Static Holding Time ** (Day) : 134 5. Opening Diameter (mm) : 50 6. Height (mm) : 591 7. Outside Diameter (mm) : 394 8. Canister Outside Diameter (mm) : 38 9. Outside Height (mm) : 120 10. Empty Weight (kg) : 8.5 11. Full Weight (kg) : 20.5 |
 |
| YDS-20 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 20 3. Static Evapouration Rate* (L/D) : 0.12 4. Static Holding Time ** (Day) : 168 5. Opening Diameter (mm) : 50 6. Height (mm) : 672 7. Outside Diameter (mm) : 394 8. Canister Outside Diameter (mm) : 38 9. Outside Height (mm) : 120/276 10. Empty Weight (kg) : 9.5 11. Full Weight (kg) : 28.1 |
 |
| YDS-30 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 30 3. Static Evapouration Rate* (L/D) : 0.12 4. Static Holding Time ** (Day) : 254 5. Opening Diameter (mm) : 50 6. Height (mm) : 705 7. Outside Diameter (mm) : 462 8. Canister Outside Diameter (mm) : 38 9. Outside Height (mm) : 120/276 10. Empty Weight (kg) : 12.9 11. Full Weight (kg) : 36.6 |
 |
| YDS-30-80 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 30 3. Static Evapouration Rate* (L/D) : 0.21 4. Static Holding Time ** (Day) : 147 5. Opening Diameter (mm) : 80 6. Height (mm) : 709 7. Outside Diameter (mm) : 462 8. Canister Outside Diameter (mm) : 63 9. Outside Height (mm) : 120/276 10. Empty Weight (kg) : 13 11. Full Weight (kg) : 37 |
 |
| YDS-30-125 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 30 3. Static Evapouration Rate* (L/D) : 0.35 4. Static Holding Time ** (Day) : 90 5. Opening Diameter (mm) : 125 6. Height (mm) : 704 7. Outside Diameter (mm) : 462 8. Canister Outside Diameter (mm) : 97 9. Outside Height (mm) : 120 10. Empty Weight (kg) : 13 11. Full Weight (kg) : 38.9 |
 |
| YDS-35 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 35 3. Static Evapouration Rate* (L/D) : 0.12 4. Static Holding Time ** (Day) : 286 5. Opening Diameter (mm) : 50 6. Height (mm) : 749 7. Outside Diameter (mm) : 462 8. Canister Outside Diameter (mm) : 38 9. Outside Height (mm) : 120/276 10. Empty Weight (kg) : 14.2 11. Full Weight (kg) : 42.7 |
 |
| YDS-35-80 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 35 3. Static Evapouration Rate* (L/D) : 0.22 4. Static Holding Time ** (Day) : 159 5. Opening Diameter (mm) : 80 6. Height (mm) : 753 7. Outside Diameter (mm) : 462 8. Canister Outside Diameter (mm) : 63 9. Outside Height (mm) : 276 10. Empty Weight (kg) : 14.5 11. Full Weight (kg) : 42.9 |
 |
| YDS-35-125 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 35 3. Static Evapouration Rate* (L/D) : 0.37 4. Static Holding Time ** (Day) : 97 5. Opening Diameter (mm) : 125 6. Height (mm) : 748 7. Outside Diameter (mm) : 462 8. Canister Outside Diameter (mm) : 97 9. Outside Height (mm) : 276 10. Empty Weight (kg) : 14.6 11. Full Weight (kg) : 43.2 |
 |
| YDS-47-127 | 1. Maximum Storage Volume : 10 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 47 3. Static Evapouration Rate* (L/D) : 0.36 4. Static Holding Time ** (Day) : 130 5. Opening Diameter (mm) : 127 6. Height (mm) : 718 7. Outside Diameter (mm) : 508 8. Canister Outside Diameter (mm) : 72 9. Outside Height (mm) : 276 10. Empty Weight (kg) : 18.2 11. Full Weight (kg) : 54 |
 |
| YDS-20B | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 20 3. Static Evapouration Rate* (L/D) : 0.2 4. Static Holding Time ** (Day) : 101 5. Opening Diameter (mm) : 50 6. Height (mm) : 672 7. Outside Diameter (mm) : 394 8. Canister Outside Diameter (mm) : 38 9. Outside Height (mm) : 120/276 10. Empty Weight (kg) : 9.5 11. Full Weight (kg) : 27.9 |
 |
| YDS-30B | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 30 3. Static Evapouration Rate* (L/D) : 0.2 4. Static Holding Time ** (Day) : 159 5. Opening Diameter (mm) : 50 6. Height (mm) : 705 7. Outside Diameter (mm) : 462 8. Canister Outside Diameter (mm) : 38 9. Outside Height (mm) : 120/276 10. Empty Weight (kg) : 12.9 11. Full Weight (kg) : 37.1 |
 |
| YDS-35B | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 35 3. Static Evapouration Rate* (L/D) : 0.2 4. Static Holding Time ** (Day) : 179 5. Opening Diameter (mm) : 50 6. Height (mm) : 749 7. Outside Diameter (mm) : 462 8. Canister Outside Diameter (mm) : 38 9. Outside Height (mm) : 120/276 10. Empty Weight (kg) : 14.2 11. Full Weight (kg) : 42.8 |
 |
| YDS-35B-80 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 35 3. Static Evapouration Rate* (L/D) : 0.3 4. Static Holding Time ** (Day) : 119 5. Opening Diameter (mm) : 80 6. Height (mm) : 753 7. Outside Diameter (mm) : 462 8. Canister Outside Diameter (mm) : 63 9. Outside Height (mm) : 120/276 10. Empty Weight (kg) : 14.5 11. Full Weight (kg) : 43 |
 |
| YDS-35B-125 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 35 3. Static Evapouration Rate* (L/D) : 0.41 4. Static Holding Time ** (Day) : 86 5. Opening Diameter (mm) : 125 6. Height (mm) : 748 7. Outside Diameter (mm) : 462 8. Canister Outside Diameter (mm) : 97 9. Outside Height (mm) : 120/276 10. Empty Weight (kg) : 14.6 11. Full Weight (kg) : 43.5 |
 |
| YDS-50B | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 50 3. Static Evapouration Rate* (L/D) : 0.24 4. Static Holding Time ** (Day) : 213 5. Opening Diameter (mm) : 50 6. Height (mm) : 810 7. Outside Diameter (mm) : 462 8. Canister Outside Diameter (mm) : 38 9. Outside Height (mm) : 120/276 10. Empty Weight (kg) : 17.2 11. Full Weight (kg) : 60.3 |
 |
| YDS-50B-125 | 1. Maximum Storage Volume : 6 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 50 3. Static Evapouration Rate* (L/D) : 0.45 4. Static Holding Time ** (Day) : 110 5. Opening Diameter (mm) : 125 6. Height (mm) : 817 7. Outside Diameter (mm) : 462 8. Canister Outside Diameter (mm) : 97 9. Outside Height (mm) : 120/276 10. Empty Weight (kg) : 17.3 11. Full Weight (kg) : 62 |
 |
| YDH-3-YS | 1. Maximum Storage Volume : 1 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 3 3. Absorbable Volume of LN1 (L) : 1.3 4. Static Evapouration Rate* (L/D) : 0.16 5. Liquid Phase Static Holding Time ** (Day) : 20 6. Vapour Phase Static Holding Time *** (Day) : 8 7. Opening Diameter (mm) : 50 8. Height (mm) : 435 9. Outside Diameter (mm) : 223 10. Canister Outside Diameter (mm) : 38 11. Outside Height (mm) : 120 12. Empty Weight (kg) : 3.2 13. Full Weight (kg) : 4.7 |
 |
| YDH-6-80-YS | 1. Maximum Storage Volume : 1 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 6 3. Absorbable Volume of LN1 (L) : 2.9 4. Static Evapouration Rate* (L/D) : 0.2 5. Liquid Phase Static Holding Time ** (Day) : 37 6. Vapour Phase Static Holding Time *** (Day) : 14 7. Opening Diameter (mm) : 80 8. Height (mm) : 487 9. Outside Diameter (mm) : 300 10. Canister Outside Diameter (mm) : 63 11. Outside Height (mm) : 120 12. Empty Weight (kg) : 6.5 13. Full Weight (kg) : 8.9 |
 |
| YDH-10-125-F | 1. Maximum Storage Volume : 1 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 10 3. Absorbable Volume of LN1 (L) : 3.4 4. Static Evapouration Rate* (L/D) : 0.43 5. Liquid Phase Static Holding Time ** (Day) : 23 6. Vapour Phase Static Holding Time *** (Day) : 8 7. Opening Diameter (mm) : 125 8. Height (mm) : 625 9. Outside Diameter (mm) : 300 10. Canister Outside Diameter (mm) : 97 11. Outside Height (mm) : 120 12. Empty Weight (kg) : 8.9 13. Full Weight (kg) : 12.5 |
 |
| YDH-15-216-F | 1. Maximum Storage Volume : 1 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 15 3. Absorbable Volume of LN1 (L) : 6 4. Static Evapouration Rate* (L/D) : 1.5 5. Liquid Phase Static Holding Time ** (Day) : 10 6. Vapour Phase Static Holding Time *** (Day) : 4 7. Opening Diameter (mm) : 216 8. Height (mm) : 540 9. Outside Diameter (mm) : 394 10. Canister Outside Diameter (mm) : – 11. Outside Height (mm) : – 12. Empty Weight (kg) : 13 13. Full Weight (kg) : 17.8 |
 |
| YDH-25-216-F | 1. Maximum Storage Volume : 1 (for Number of Canister)
2. Liquid Nitrogen Volume (L) : 25 3. Absorbable Volume of LN1 (L) : 9 4. Static Evapouration Rate* (L/D) : 0.89 5. Liquid Phase Static Holding Time ** (Day) : 29 6. Vapour Phase Static Holding Time *** (Day) : 10 7. Opening Diameter (mm) : 216 8. Height (mm) : 716 9. Outside Diameter (mm) : 394 10. Canister Outside Diameter (mm) : – 11. Outside Height (mm) : – 12. Empty Weight (kg) : 15 13. Full Weight (kg) : 23 |
 |
| YDZ-5 | 1. Liquid Nitrogen Volume (L) : 25
2. Static Evapouration Rate* (L/D) : 0.15 3. LN2 Output (L/Min) : 2 4. Height (mm) : 510 5. Outside Diameter (mm) : 329 6. Empty Weight (kg) : 15 7. Full Weight (kg) : 19.1 |
 |
| YDZ-15 | 1. Liquid Nitrogen Volume (L) : 15
2. Static Evapouration Rate* (L/D) : 0.38 3. LN2 Output (L/Min) : 2 4. Height (mm) : 750 5. Outside Diameter (mm) : 404 6. Empty Weight (kg) : 23 7. Full Weight (kg) : 35.3 |
 |
| YDZ-30 | 1. Liquid Nitrogen Volume (L) : 30
2. Static Evapouration Rate* (L/D) : 0.75 3. LN2 Output (L/Min) : 3 4. Height (mm) : 879 5. Outside Diameter (mm) : 454 6. Empty Weight (kg) : 32 7. Full Weight (kg) : 56.6 |
 |
| YDZ-50 | 1. Liquid Nitrogen Volume (L) : 50
2. Static Evapouration Rate* (L/D) : 1 3. LN2 Output (L/Min) : 3 4. Height (mm) : 991 5. Outside Diameter (mm) : 506 6. Empty Weight (kg) : 54 7. Full Weight (kg) : 95.0 |
 |
| YDZ-100
YDZ-100K |
1. Liquid Nitrogen Volume (L) : 100
2. Static Evapouration Rate* (L/D) : 1.3 3. LN2 Output (L/Min) : 4 4. Height (mm) : 1185 5. Outside Diameter (mm) : 606 6. Empty Weight (kg) : 75 7. Full Weight (kg) : 157.0 |
 |
| YDZ-150 | 1. Liquid Nitrogen Volume (L) : 150
2. Static Evapouration Rate* (L/D) : 1.95 3. LN2 Output (L/Min) : 6 4. Height (mm) : 1188 5. Outside Diameter (mm) : 706 6. Empty Weight (kg) : 102 7. Full Weight (kg) : 225 |
 |
| YDZ-200
YDZ-200K |
1. Liquid Nitrogen Volume (L) : 200
2. Static Evapouration Rate* (L/D) : 2.4 3. LN2 Output (L/Min) : 8 4. Height (mm) : 1265 5. Outside Diameter (mm) : 758 6. Empty Weight (kg) : 130 7. Full Weight (kg) : 296 |
 |
| YDZ-240K | 1. Liquid Nitrogen Volume (L) : 240
2. Static Evapouration Rate* (L/D) : 2.9 3. LN2 Output (L/Min) : 8 4. Height (mm) : 1350 5. Outside Diameter (mm) : 758 6. Empty Weight (kg) : 148 7. Full Weight (kg) : 350 |
 |
| YDZ-300
YDZ-300K |
1. Liquid Nitrogen Volume (L) : 300
2. Static Evapouration Rate* (L/D) : 3.3 3. LN2 Output (L/Min) : 8 4. Height (mm) : 1459 5. Outside Diameter (mm) : 857 6. Empty Weight (kg) : 202 7. Full Weight (kg) : 448 |
 |
| YDZ-500
YDZ-500K |
1. Liquid Nitrogen Volume (L) : 500
2. Static Evapouration Rate* (L/D) : 5.5 3. LN2 Output (L/Min) : 10 4. Height (mm) : 1576 5. Outside Diameter (mm) : 1008 6. Empty Weight (kg) : 255 7. Full Weight (kg) : 665 |
 |
| CryoBio13 | 1. Liquid Nitrogen Volume (L) : 350
2. 2mL Vials (Internal Thread) : 13000 3. Volume of LN2 Under the Tray (L) : 55 4. Operating Height (mm) :990 5. Inside Neck Diameter (mm) : 326 6. Height (mm) : 1505 7. Empty Weight (kg) : 269 |
 |
| CryoBio27 | 1. Liquid Nitrogen Volume (L) : 587
2. 2mL Vials (Internal Thread) : 27000 3. Volume of LN2 Under the Tray (L) : 80 4. Operating Height (mm) :1070 5. Inside Neck Diameter (mm) : 445 6. Height (mm) : 1588 7. Empty Weight (kg) : 420 |
 |
| CryoBio43 | 1. Liquid Nitrogen Volume (L) : 890
2. 2mL Vials (Internal Thread) : 42900 3. Volume of LN2 Under the Tray (L) : 135 4. Operating Height (mm) :1000 5. Inside Neck Diameter (mm) : 465 6. Height (mm) : 1810 7. Empty Weight (kg) : 471 |
 |
| CryoBio95 | 1. Liquid Nitrogen Volume (L) : 1880
2. 2mL Vials (Internal Thread) : 94875 3. Volume of LN2 Under the Tray (L) : 320 4. Operating Height (mm) :1097 5. Inside Neck Diameter (mm) : 635 6. Height (mm) : 1950 7. Empty Weight (kg) : 909 |
 |
| CryoBio 6S | 1. Liquid Nitrogen Volume (L) : 175
2. 2mL Vials (Internal Thread) : 6000 3. Volume of LN2 Under the Tray (L) :175 4. Inside Neck Diameter (mm) : 216 5. Height (mm) : 1490 6. Empty Weight (kg) : 78 |
 |
