Patch Clamp Amplifier
Product Code: TPC-200

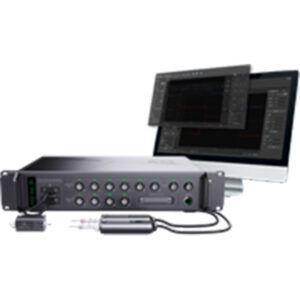

The TPC-200 (Techman patch clamp) Patch Clamp Amplifier system is a highly integrated patch clamp system independently developed by Techman, and all functions are completed computed by Tpatch software.This system is a three in one system that includes patch clamp amplifiers, AD/DA converters, and data acquisition and analysis software.
Key Features
Highly Integrated
Integrated design of patch clamp amplifier, AD/DA converters, data acquisition and analysis software.
Low Noise
RMS ≤ 2pA (with a 8-Bessel filter and the Filter Frequency is 10 kHz ).
Analysis Module
The analysis software features specialized modules for synaptic event analysis, action potential analysis, single-channel analysis, LTP/LTD analysis, as well as various fitting functions.
Multi-Recording Mode
VC and CC modes can record various ion channel currents, spontaneous synaptic activities, action potentials and other signals.
Automatic Compensation
In VC mode the automatic compensation function for electrode capacitance, cell membrane capacitance and series resistance; it also has the automatic compensation and automatic correction functions for liquid contact potential; in CC mode the electrode capacitance and bridge balance can be automatically compensated.
Multifunctional Data Acquisition System
The Tpatch software includes membrane test, customizable stimulation schemes, P/N leak, dedicated windows for LTP/LTD/PPR, TTL external trigger, and can record the analog signals from other devices (such as temperature, pressure, muscle tension, light signals, electromagnetic wave signals, etc.)
AI Introduced
Integrates AI intelligent teaching and file management functions, provides theoretical knowledge about patch clamp, as well as explanations of experimental operation procedures. The Bath, Seal and Cell three steps are automatically switched by software
Technical Specifications
| Amplifier | Dual headstages, each of them with a feedback resistance of 500 MΩ, the maximum recorded current is ±20 nA, the maximum recorded voltage is ±250 mV; the bandwidth is 30kHz. |
| Noise:RMSs2pA(with a 8-Bessel filter and the Filter Frequency is 10 kHz ). | |
| Hold :+750mV In VC Mode: ±20nA In CC Mode. | |
| Filter:Including 8-pole Bessel filter, high pass filter and 50Hz notch filter.Bessel filter frequency range: 1Hz to 100kHz; high-pass filter frequency range: DC to 100Hz | |
| ADIDA | 16-bit resolution, with the highest sampling frequency of 200kHz for a channel. |
| it can be directly confirmed by the acquisition software through a high-speed USB interface(3.0)when connected to the computer. | |
| Number of channels: 8 Analog Inputs, 6 Analog Outputs, 8 Digital Outputs, 8 Digital inputs.1 Trigger Out and 1 Trigger In. | |
| Data collection and analysis | The Tpatch software includes membrane test, customizable stimulation schemes, P/N leak.dedicated windows for LTP/LTD/PPR, TTL external trigger, and can record the analog signals from other devices (such as temperature, pressure, muscle tension, light signals, electromagnetic wave signals, etc.) |
| The recorded data can include up to 100 pieces of metadata (such as the species of the animal, genotype, cell type, environmental temperature, resistance value, capacitance value etc.). | |
| The analysis software features specialized modules for synaptic event analysis, actionpotentialanalysis,single-channel analysis, LTP/LTD analysis, as well as various fitting functions. | |
| Integrates intelligent teaching and file management functions, provides theoretical knowledge on patch clamp, as well as explanations of experimental operation procedures. TheBath, Seal and Cell three steps are automatically switched by software. |
Applications
| Whole Cell Recording
Perforated Clamp Recording eIn Vivo Patch Clamp Recording |
Intracellar Recording
Cultured Cells and Cell Lines Experiments Electrochemical Research |
Extracellar Recording
Combining withIn Vivo or In Vitro Optogenetics Neural Circuit Research |
